Parts List
Every part known so far. Links go to the original product pages. Anything not yet confirmed by the owner is marked, and unknown quantities say so instead of showing zero.
Drums
Mapex Black Panther 12-inch snare
Details pending owner verification
- Use
- Snare to performer left; tuned relatively high
- Specifications
- 12-inch diameter; badge reads Mapex Maple Black Panther; depth/model unknown
- Quantity
- Not confirmed
No link documented
Mapex 14 x 6.5-inch floor tom
Details pending owner verification
- Use
- Bass voice on performer right
- Specifications
- 14-inch diameter x 6.5-inch depth per owner; badge reads Mapex Saturn
- Quantity
- Not confirmed
No link documented
Cymbals
Zildjian ZHT 10-inch Splash
- Use
- Custom hi-hat TOP cymbal
- Specifications
- 10 in
- Quantity
- 1
Source: Unknown. No link documented
Craftsman DGC Series 10-inch China
- Use
- Custom hi-hat BOTTOM cymbal; credit @craftsman_tw
- Specifications
- 10 in
- Quantity
- 1
Source: Craftsman. No link documented
Wuhan Western Series 8-inch Splash
- Use
- Separate splash cymbal
- Specifications
- 8 in
- Quantity
- 1
View at SweetwaterOriginal link · not an affiliate link
Wuhan 13-inch crash
Details pending owner verification
- Use
- Crash cymbal on the floor-tom side (wearer's right)
- Specifications
- 13 in; owner's closest product match is the Wuhan Thin Crash (not confirmed as the exact model or where it was bought)
- Quantity
- 1
View at drumcenternh.comOriginal link · not an affiliate link
Percussion
Latin Percussion LP205 Timbale Cowbell
Details pending owner verification
- Use
- Cowbell mounted with same type of stand and rod as separate splash
- Specifications
- LP205; photo label: Made in USA
- Quantity
- 1
No link documented
Harness
REMO USA silver marching snare harness
Details pending owner verification
- Use
- Main rigid wearable carrier; original rods replaced
- Specifications
- Second hand, $99.95
- Quantity
- Not confirmed
Source: eBay. No link documented
tactifans shoulder strap pads, 2-pack
Details pending owner verification
- Use
- Comfort pads for harness shoulder straps
- Specifications
- Fits 2-inch shoulder straps
- Quantity
- Not confirmed
- ASIN
- B0BWMQ941K
View at AmazonOriginal link · not an affiliate link
Custom fabrication

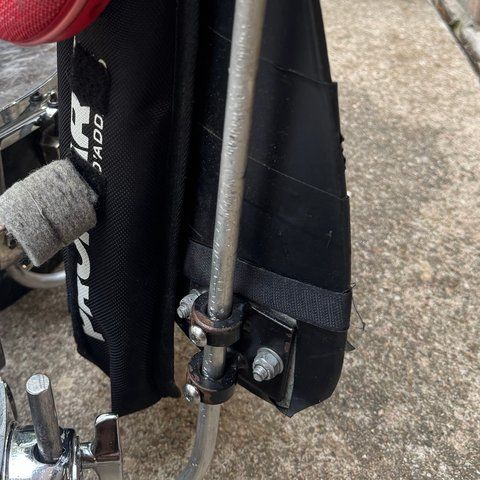

Chalo Colina custom REMO harness replacement rods
Custom fabrication, not off-the-shelf
Details pending owner verification
- Use
- Replace incompatible OEM REMO carrier rods
- Specifications
- 7/16-inch diameter aluminum; length/shape TBD
- Quantity
- Not confirmed

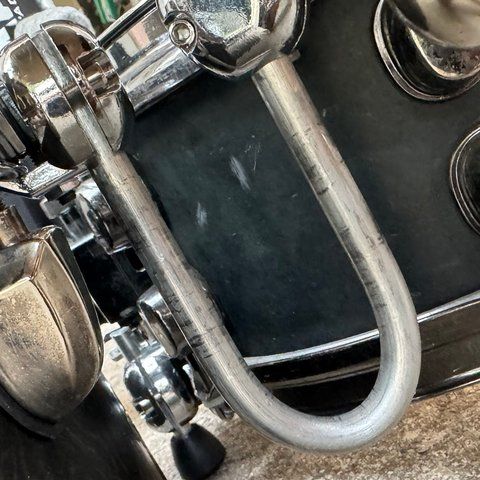

Chalo Colina custom U-shaped snare-floor-tom connector
Custom fabrication, not off-the-shelf
Details pending owner verification
- Use
- Connects snare and floor tom; concept James Hsu; fabrication Chalo Colina
- Specifications
- 7/16-inch aluminum; bend geometry TBD
- Quantity
- 1

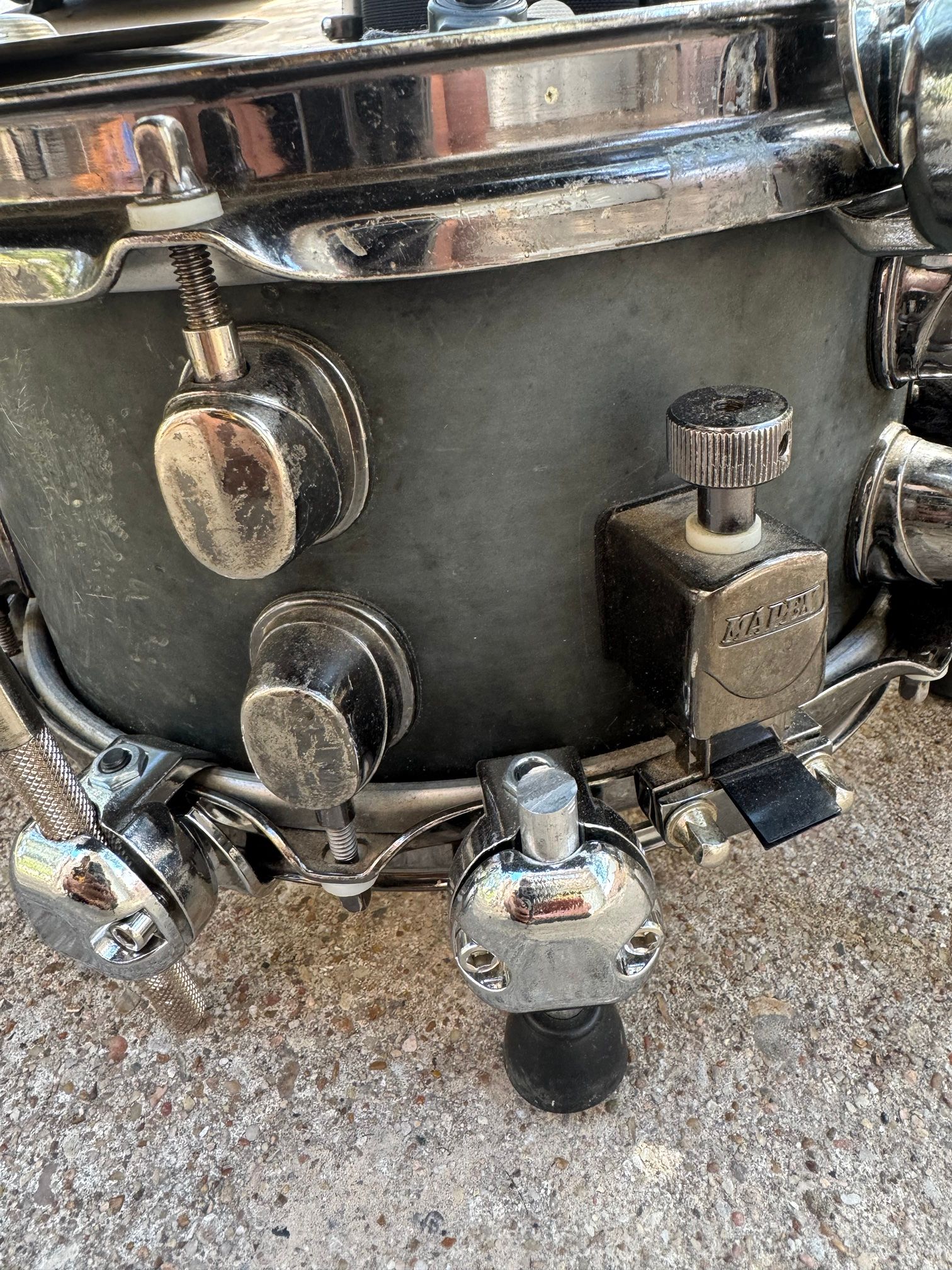

Snare raiser from the floor tom's own legs
Custom fabrication, not off-the-shelf
Details pending owner verification
- Use
- Held in drum hoop mounting clamps, the same clamps used elsewhere on the kit, to raise the snare to the floor tom's height; idea by James Hsu
- Specifications
- The 3 original floor-tom legs, cut very short; cut length TBD
- Quantity
- 3
Mounts

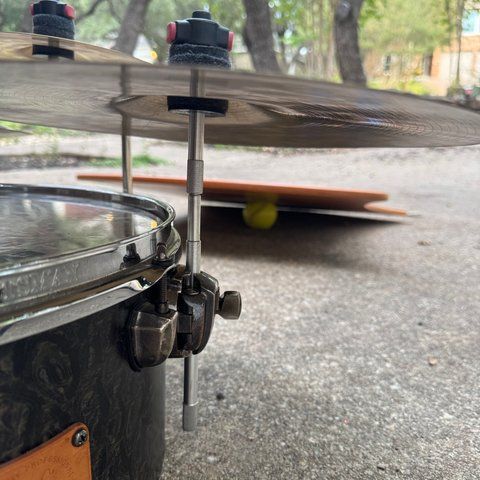

Low-profile 3-piece cymbal stackers
Details pending owner verification
- Use
- Low-height cymbal mounting
- Specifications
- M8; package lengths 4, 5.7 and 7.28 inches
- Quantity
- Not confirmed
- ASIN
- B0DMZT22NM
View at AmazonOriginal link · not an affiliate link

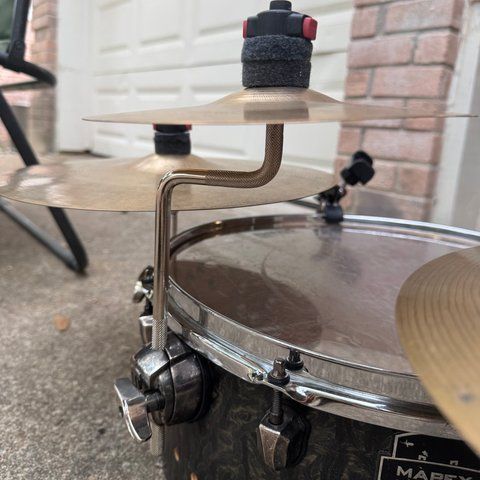

Z-shaped cymbal boom arm
Details pending owner verification
- Use
- Separate splash mounting hardware
- Specifications
- Z-shape
- Quantity
- Not confirmed
- ASIN
- B0DJ8DFCWL
View at AmazonOriginal link · not an affiliate link
TAMA Quick Set Cymbal Mate
Details pending owner verification
- Use
- Manual fixed-hi-hat cymbal tension/pressure adjustment
- Specifications
- QC8B4, M8, 4-pack sold; installed count unknown
- Quantity
- Not confirmed
- ASIN
- B005LVJRIE
View at AmazonOriginal link · not an affiliate link

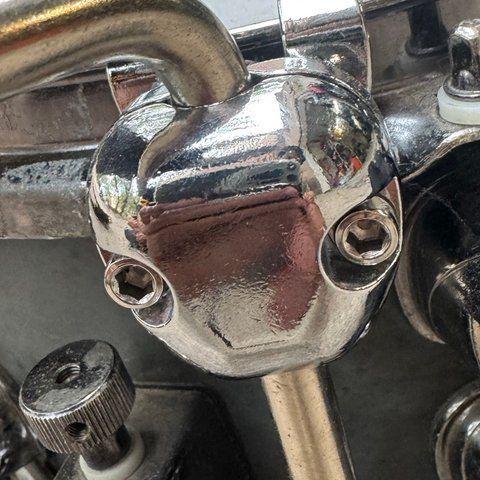

Drum hoop mounting clamp
Details pending owner verification
- Use
- Hardware for mounts and brackets, including the snare raiser
- Specifications
- Exact installed quantity unknown
- Quantity
- Not confirmed
- ASIN
- B0C7K65TJM
View at AmazonOriginal link · not an affiliate link

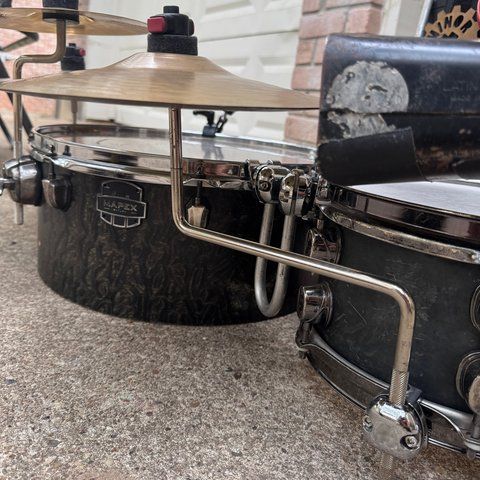

Hi-hat hoop clamp with Z-rod
Details pending owner verification
- Use
- Supports pedal-free custom hi-hat
- Specifications
- A-Z shape product variant
- Quantity
- Not confirmed
- ASIN
- B0C7K8YMR7
View at AmazonOriginal link · not an affiliate link
Sticks & brushes

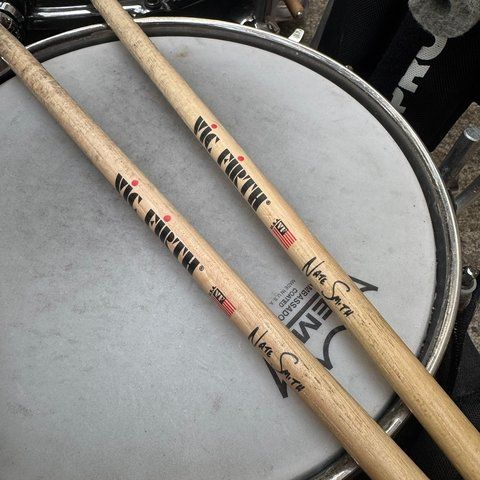

Vic Firth Nate Smith signature SNS sticks
Details pending owner verification
- Use
- Primary sticks
- Specifications
- 0.535 in (13.6 mm) diameter; 16 in long
- Quantity
- Not confirmed
No link documented

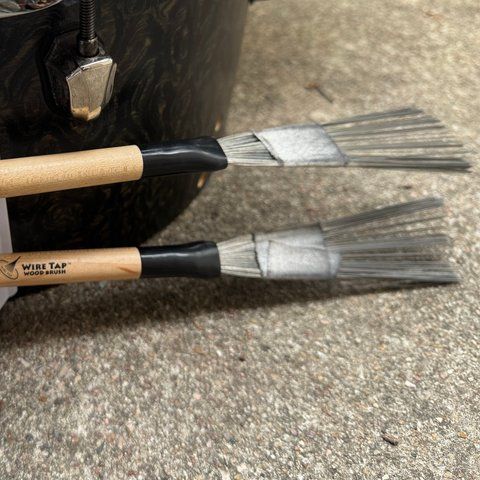

Vater Wire Tap Wood Brushes VWTW
Details pending owner verification
- Use
- Brushes for playing; nonretractable metal bristles, wood handle
- Quantity
- Not confirmed
View at SweetwaterOriginal link · not an affiliate link
Accessories
ProMark PQ2 two-pair marching stick bag
Details pending owner verification
- Use
- Carry drumsticks
- Quantity
- Not confirmed
- ASIN
- B019JD0TLS
View at AmazonOriginal link · not an affiliate link
Yamaha MBMH-2 mallet holders, 2-pack
Details pending owner verification
- Use
- Repurposed as brush holders
- Specifications
- Original product name mentions bass drum, but kit has no conventional kick
- Quantity
- Not confirmed
View at SweetwaterOriginal link · not an affiliate link
KEMIMOTO Large Bike Cup Holder
Details pending owner verification
- Use
- Cup/drink holder, storage pouch
- Quantity
- Not confirmed
- ASIN
- B0CZTRX5VD
View at AmazonOriginal link · not an affiliate link

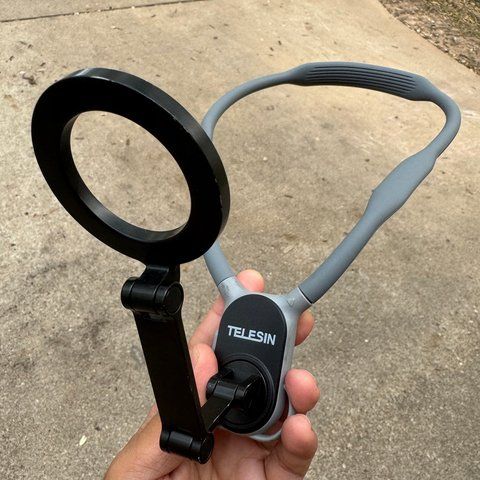

TELESIN Magnetic Neck Phone Mount
- Use
- Neck phone mount; used concurrently with Khazylorr mount
- Specifications
- Specific filming role unconfirmed
- Quantity
- 1
- ASIN
- B0CLRHYNP4
View at AmazonOriginal link · not an affiliate link
Khazylorr Guitar Phone Mount
- Use
- Clamp/magic-arm phone mount; used concurrently with TELESIN
- Specifications
- Specific attachment location unconfirmed
- Quantity
- 1
- ASIN
- B0FRRL1J8Z
View at AmazonOriginal link · not an affiliate link
JBL Clip 3 portable Bluetooth speaker
- Use
- Clipped to the front of the harness
- Specifications
- Fiesta Red
- Quantity
- Not confirmed
- ASIN
- B07Q8WH9TX
View at AmazonOriginal link · not an affiliate link

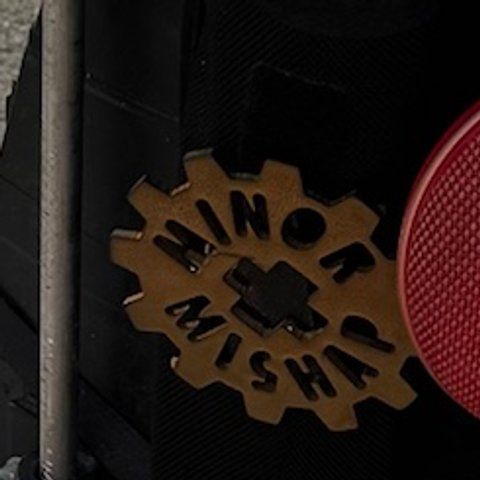

Minor Mishap badge
- Use
- Decorative badge on kit
- Specifications
- Version 3.1.0
- Quantity
- 1
Source: Custom or existing. No link documented
Tools

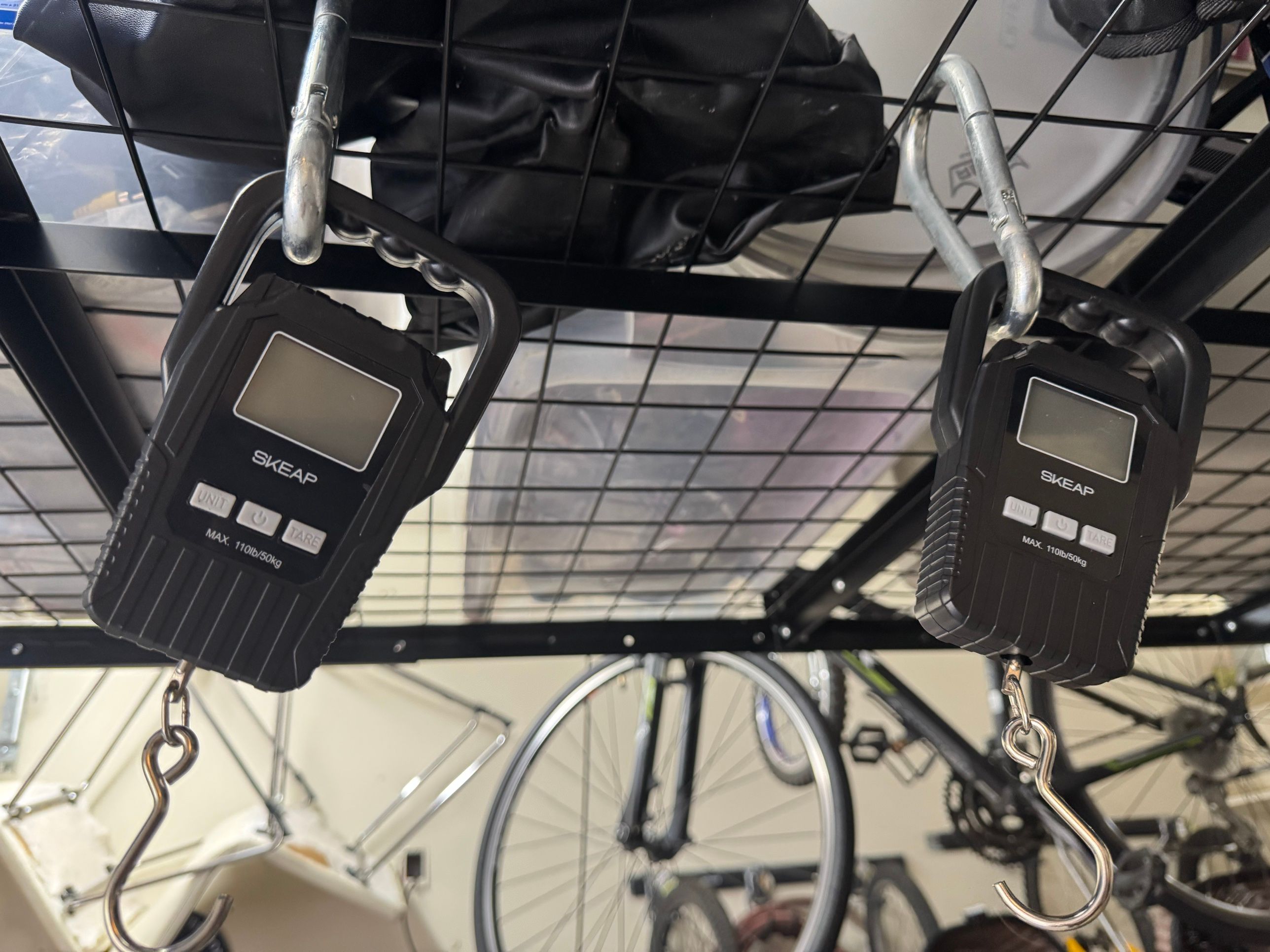

SKEAP digital luggage scales
- Use
- Two scales used to compare left/right suspended harness loads
- Specifications
- Max 110 lb / 50 kg each (printed on the scale); photographic example ~6.5 kg each; 2 units
- Quantity
- 2
- ASIN
- B09PQB73JD
View at AmazonOriginal link · not an affiliate link
